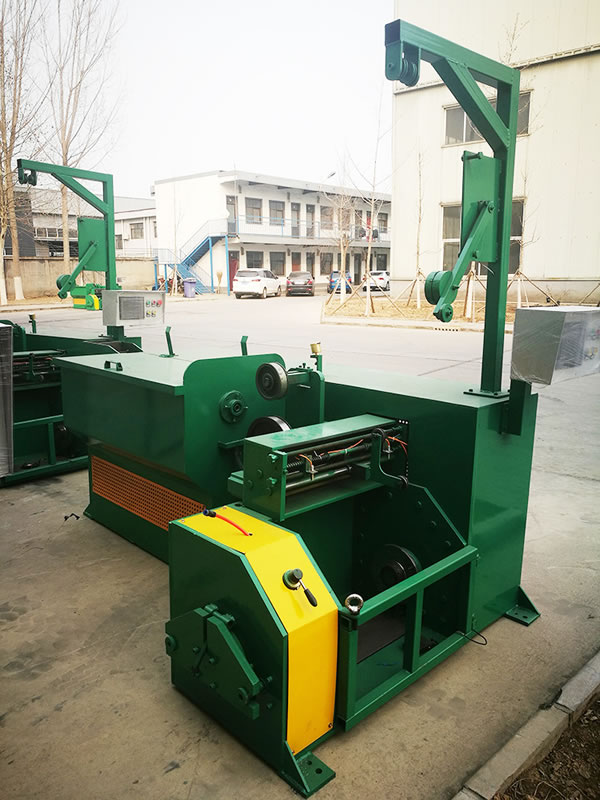

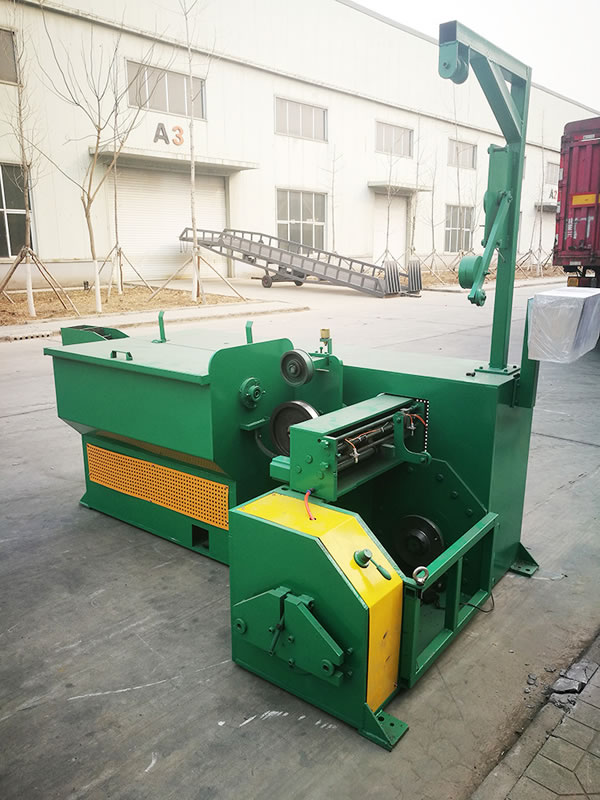

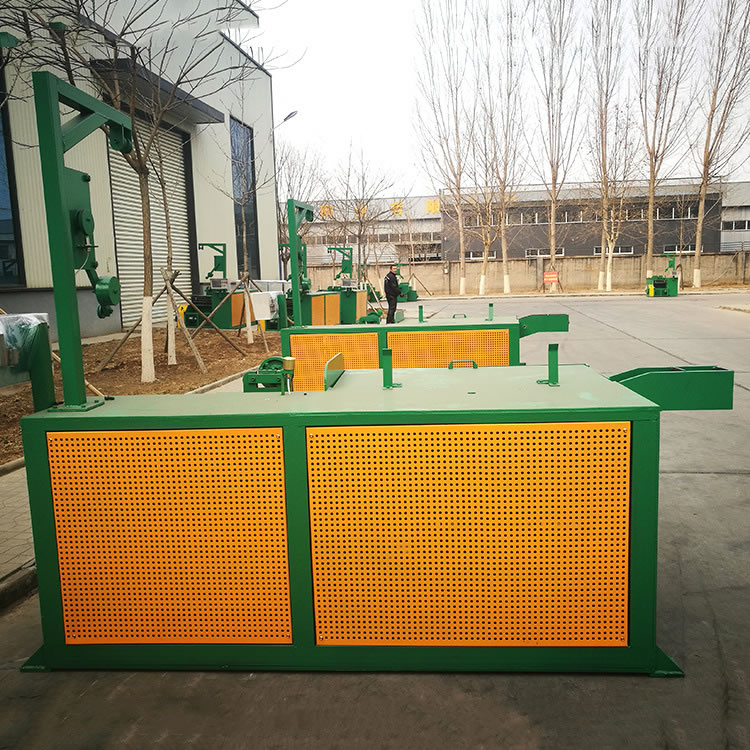

High/Low carbon steel/ straight line Wire drawing machine
(1) The equipment contains the functions of human-machine dialogue, over-temperature protection for motor, alarm for abnormal water pressure, fault display.
(2) It’s kind of high-efficient machine with easy operation, high degree of automation.
(3) Between the drawing process without intermediate pulley and the guide wheel, it does not generate bending and torsion, and convenient threading.
(4) Straight line drawing machine suitable for drawing large diameter, high strength and special shaped steel wire.
(5) As the use of the frequency technology, changes in the larger context of patts of the compression ratio to meet the wide range of technology and high speed drawing.
(6) There is no relative sliding between wire and capstan. The quality of finished wire is much better.
Size: long 3.2m, width 1.5m, height 2.15m (Including swing lever)
Water tank: long 1.2m, width 50m, deep 52cm
Take-up spooler part: long 1cm, width 67cm, height 86cm
Incoming line: ⏀2.0,
Outgoing line: ⏀0.6 ~ ⏀1.2
| LOW CARBON STEEL WIRE DRAWING MACHINE TECHNICAL DATA | |
| Machine | 12D |
| Inler diameter | ￠2.0-￠2.2 |
| Outer diameter | ￠0.6-￠1.2 |
| Max.speed | 700 |
| Max.number of drawing dies | 12 |
| Slip ratio of m/c | 15% |
| Fix speed capstan slip ratio | 11% |
| Capstan | alloy |
| Max.capstan dia | ￠350 |
| Fix speed capstan dia | ￠260 |
| Frame | Steel plate welding |
| Main machine power | 30KW three-phase AC motor |
| Spooler power | 4KW three-phase AC motor |
| Corrention system | Full linear automatic control of take-up tension |
| Dynamic contronl | Frequency conversion Control |
| Transmission method | Timing belt |
| Pay-off method | the ends of formula |
| Trasmising method | Stepper motor |
| Tension control | Swing arm type balance rod |
| Lubrication system of drawing | Immersion |
| Suitable spool | Customer settings |
| Capacaity of take-up | 100-300 |
| Loading&unloading method | Top core screw pressing type |
| Service voltage | 380V |
| Brake | Electronic brake |
| Machine dimension | 3250X880X1015 |
| Machine weight | 2400 |
