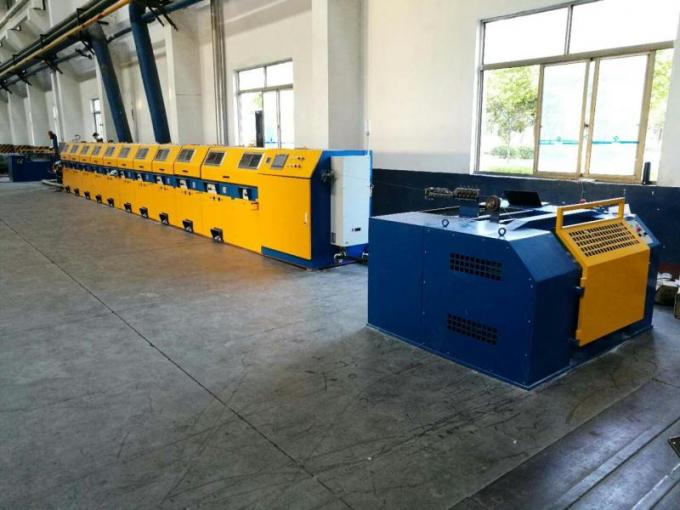

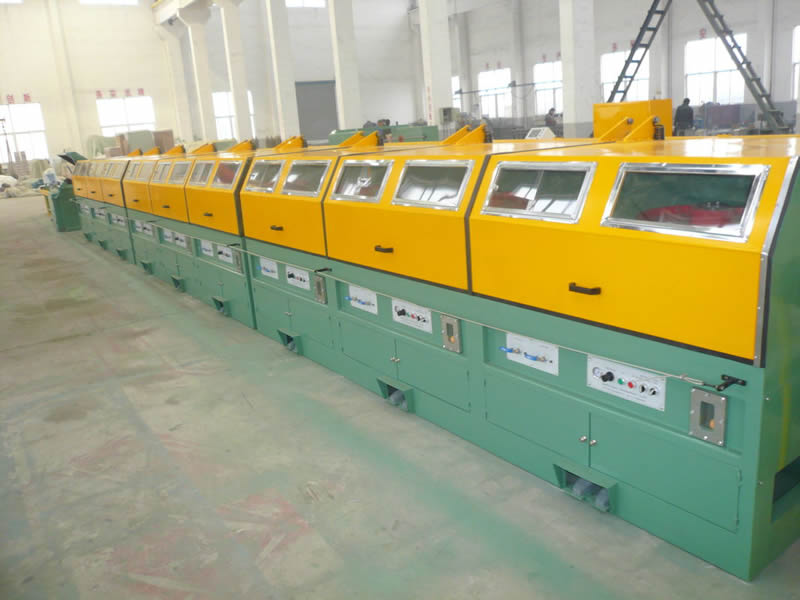

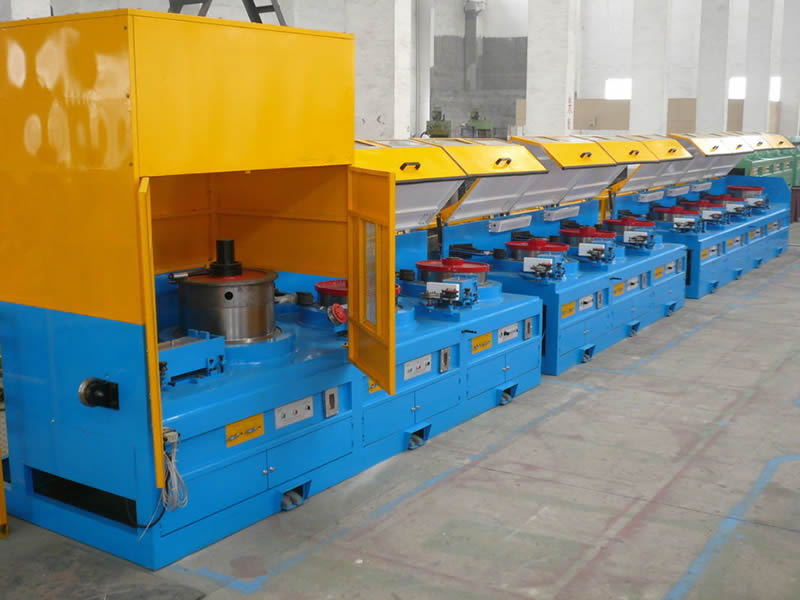

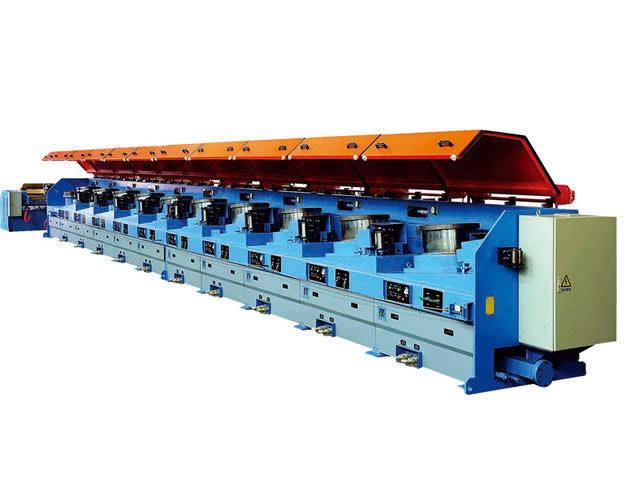

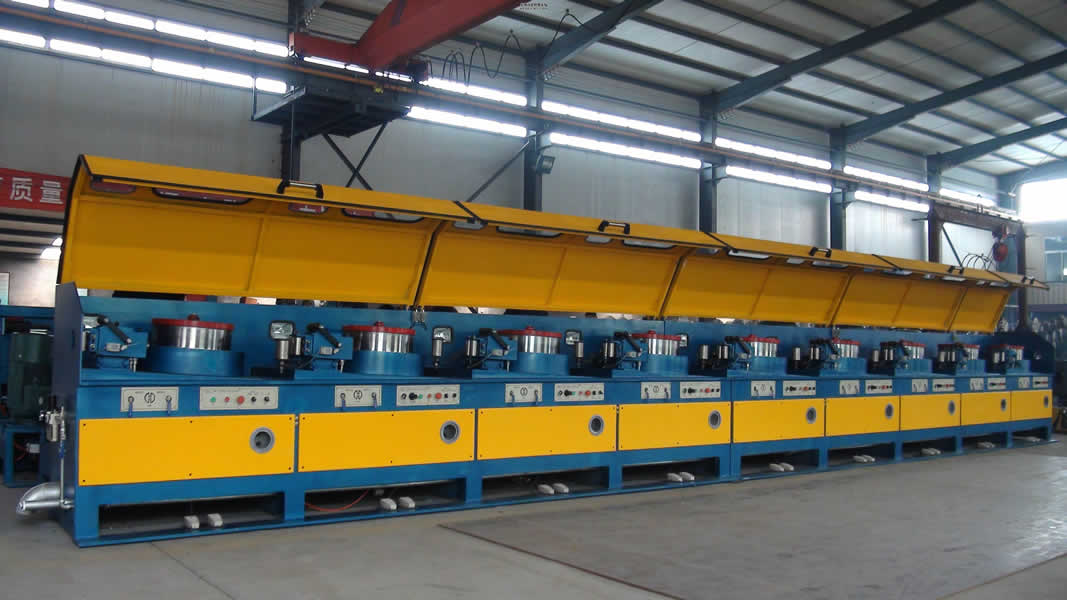

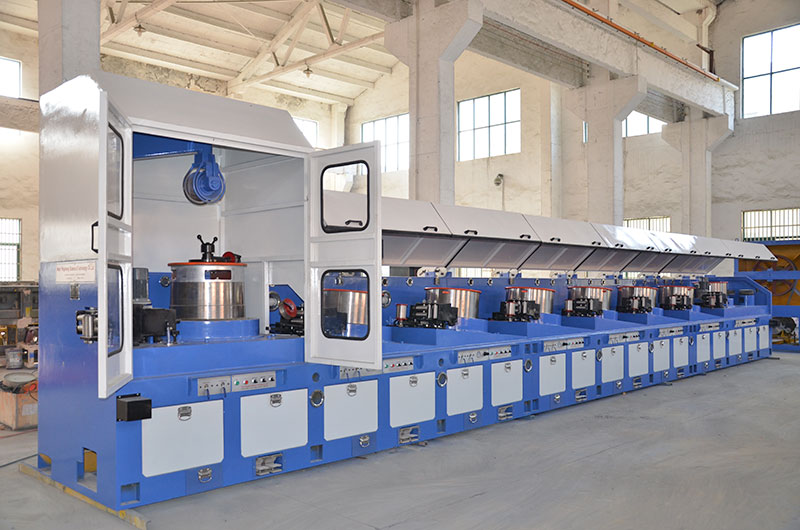

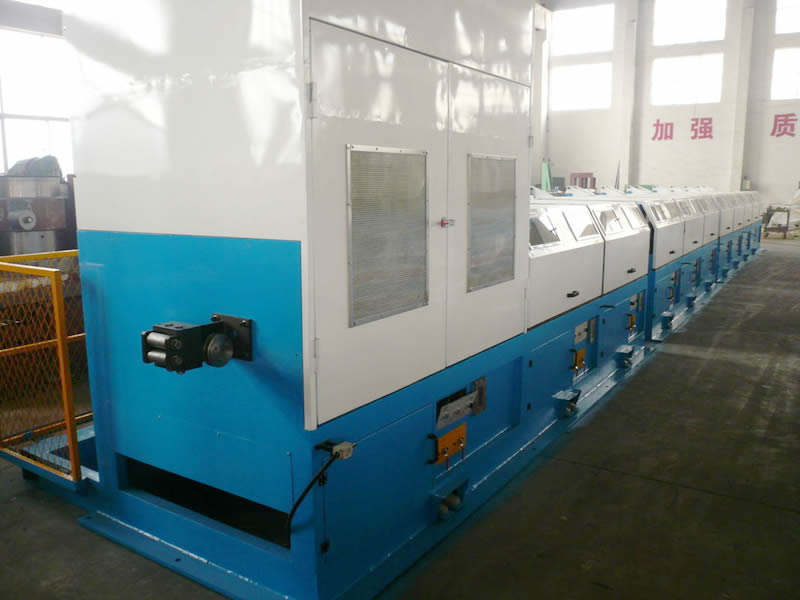

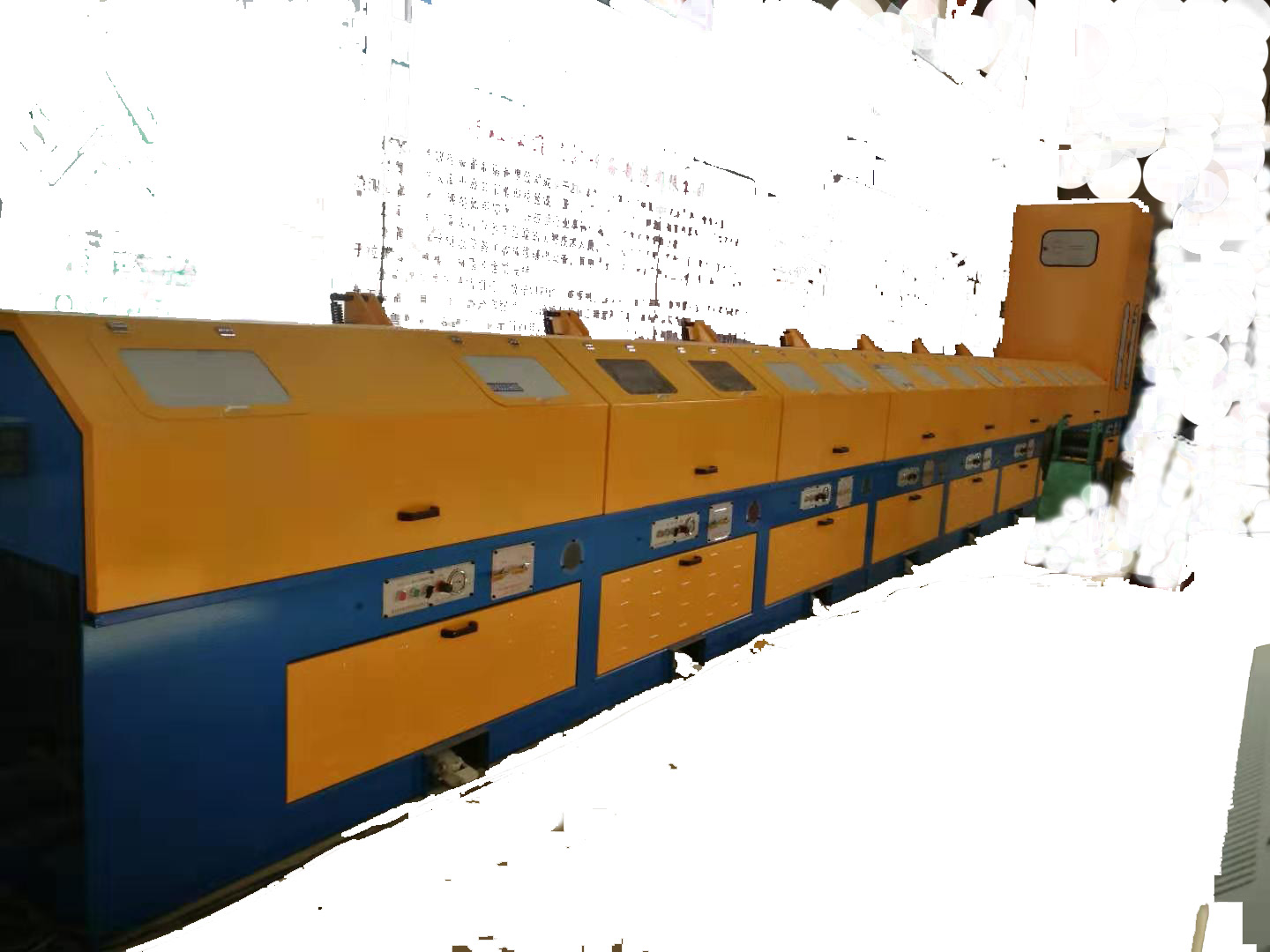

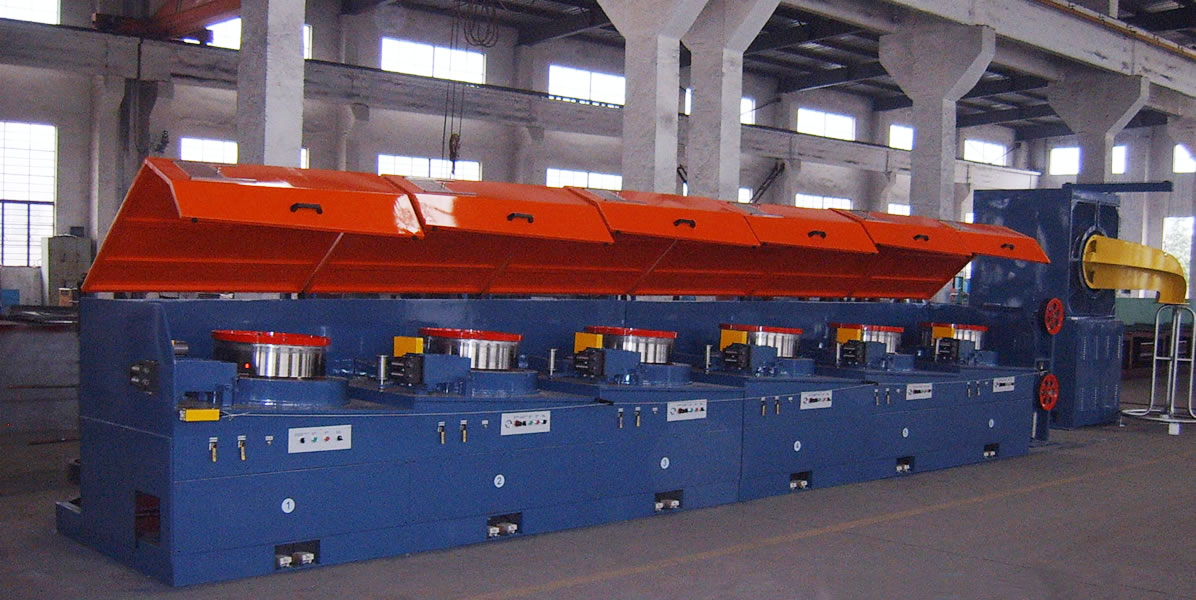

Straight line wire drawing machines are equipped with speed and stress sensors, which can achieve multi-item signal sampling to expand the function of intelligent detection of wire drawing machine. Straight line wire drawing can realize modern production line with the features of high total reduction rate, multi pass, low part reduction and high speed.The maximum inlet wire diameter is Φ6.5mm and the minimum wire diameter is Φ1.95mm.
The straight line wire drawing machine includes many inventive patents and utility model patents, such as medium capstan cooling structure, die box tuning device, lubrication supply device, pressing wire and pressing wheel device, outlet wire straightening device, etc, which can guarantee easy and stable operation of wire drawing machine.
| Specification of Drawing Machine | |
| Inlet diameter | 5.5--6.5mm |
| Outlet diameter | 1.6-2.0mm |
| Max speed | 750m/min |
| Max eye mold No | customer requested |
| Slio ratio of m/c | 23% |
| Roller diameter | 560mm |
| Tensile strength | 《1300MPA |
| Main machine power | 30KW |
| Spooler power | 11KW |
| Suitable spool | 750 |
| Sapacaity of take-up | 1000KGS |
| Service coltage | 220/380V |
| Machine dimension | 13500*1950*1015 |
| Machine weight | 19800KGS |
