Pre-Sales Service
* Inquiry and consulting support, Sample testing support, View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

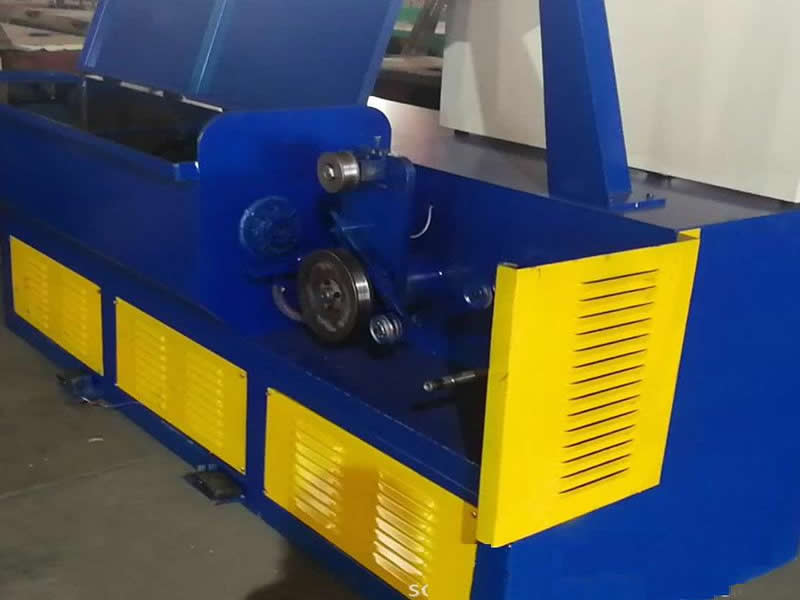

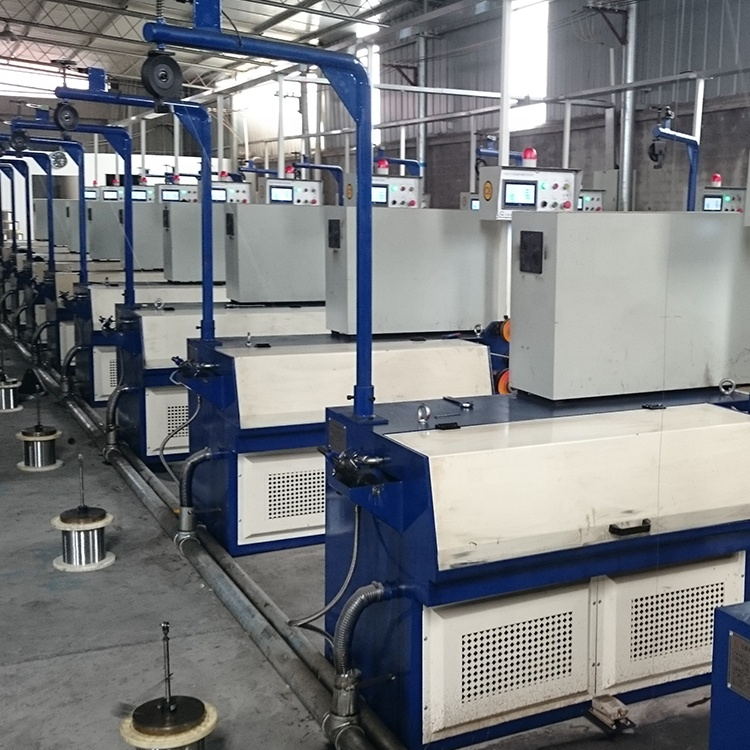

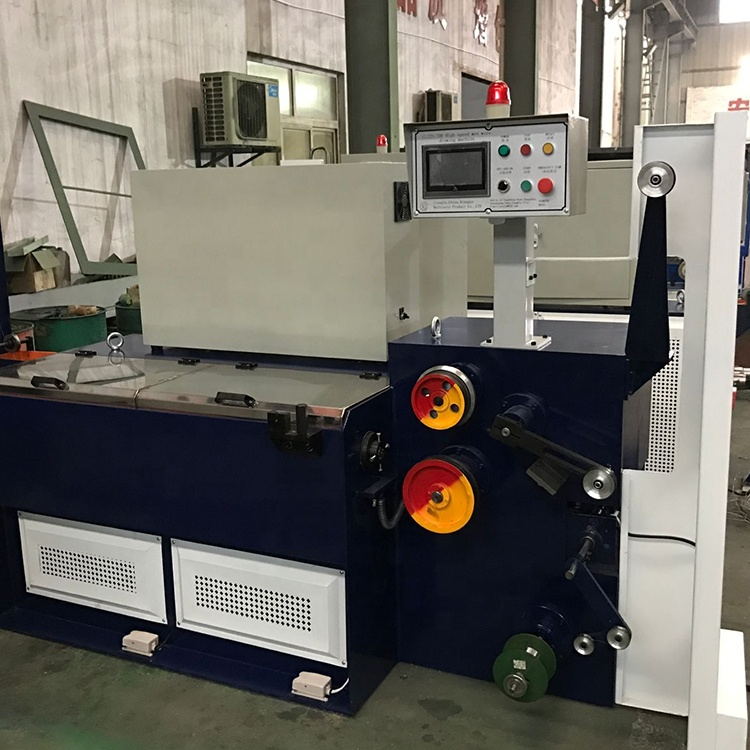

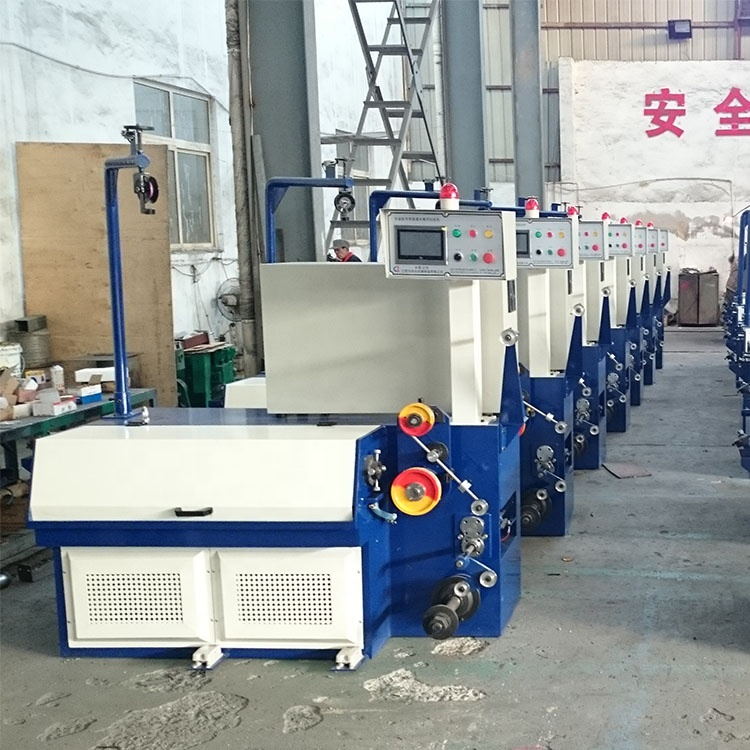

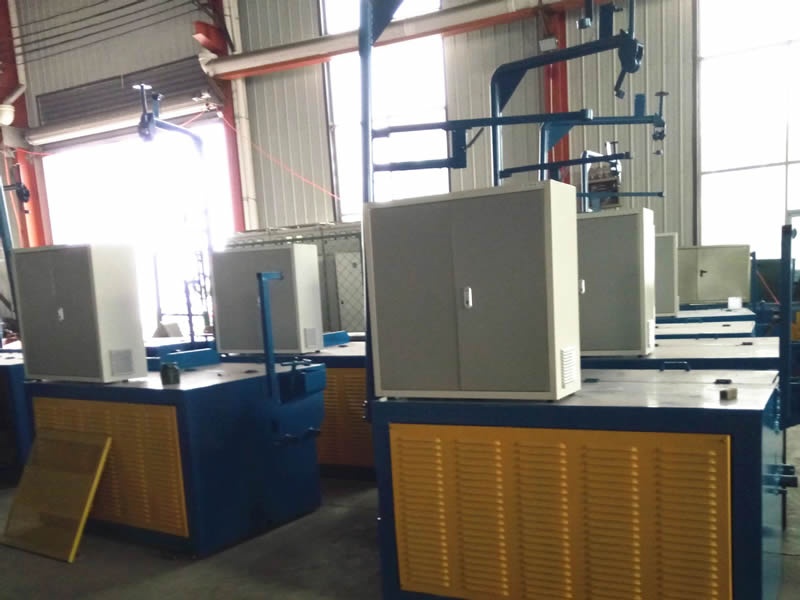

| Stainless Steel Fine Wire Drawing Machine | |
| Machine | 21D |
| Inlet diameter | 0.55-1.0mm |
| Outlet diameter | 0.05-0.23mm |
| Max line speed | 600m/min |
| Max eye mold No | 21 |
| Slio ratio of m/c | 15.0% |
| Fix speed capstan slip ratio | 11.0% |
| Capstan | Surface sprayed ceramic |
| Max. capstan dia. | 200mm |
| Fix speed capstan dia. | 200mm |
| Frame | Welded by steel plate |
| Min machine power | 11KW |
| Spooler power | 1.5KW |
| Correction system | Automatically control |
| Dynamic control | frequency inverters control |
| Trasmission method | By Timing belts |
| Pay-off method | Over- head |
| Trasmising method | Flat belt + timing motor |
| Tension control | Weight balance by swing arm |
| Lubrication systerm of drawing | Full Immersion |
| Suitable spool | 100mm,150mm |
| Sapacaity of take-up | 15-30 |
