Pre-Sales Service
* Inquiry and consulting support, Sample testing support, View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

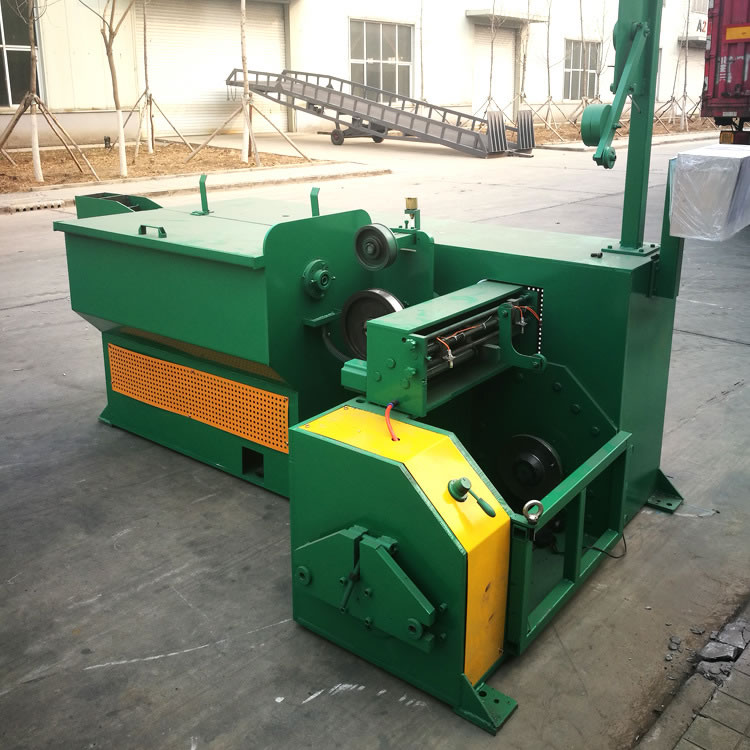

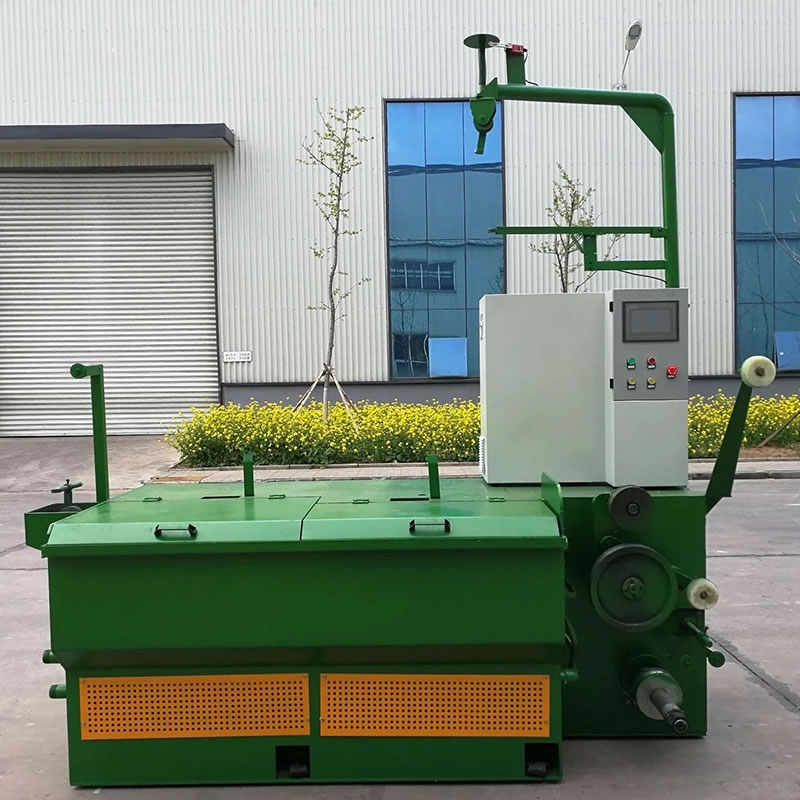

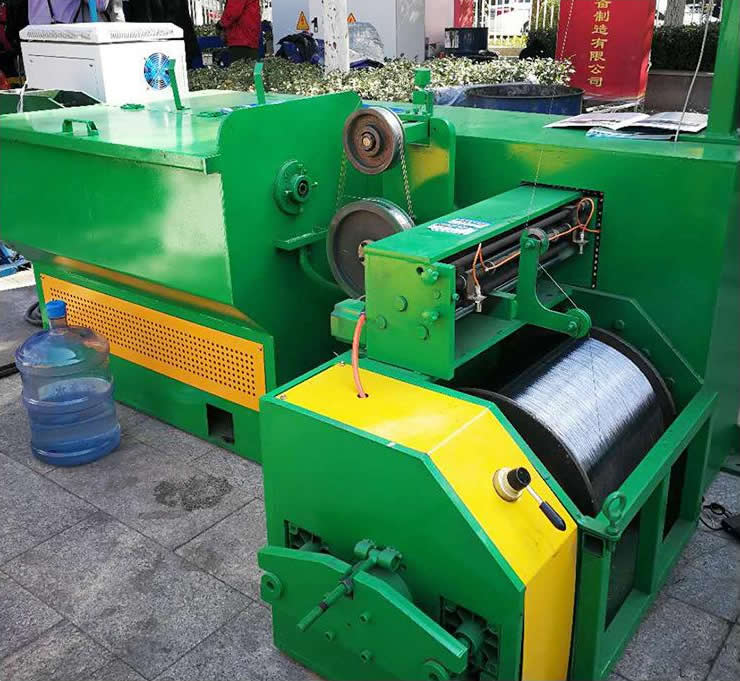

| STEEL WIRE DRAWING MACHINE TECHNICAL DATA | |
| Machine | 17D |
| Inler diameter | ￠2.0-￠2.2 |
| Outer diameter | ￠0.3-￠0.8 |
| Max.speed | 950 |
| Max.number of drawing dies | 17 |
| Slip ratio of m/c | 15% |
| Fix speed capstan slip ratio | 11% |
| Capstan | alloy |
| Max.capstan dia | ￠230 |
| Fix speed capstan dia | ￠260 |
| Frame | Steel plate welding |
| Main machine power | 22KW three-phase AC motor |
| Spooler power | 4KW three-phase AC motor |
| Corrention system | Full linear automatic control of take-up tension |
| Dynamic contronl | Frequency conversion Control |
| Transmission method | Timing belt |
| Pay-off method | the ends of formula |
| Trasmising method | Stepper motor |
| Tension control | Swing arm type balance rod |
| Lubrication system of drawing | Immersion |
| Suitable spool(mm) | ￠300 ￠350 |
| Capacaity of take-up(KG) | 100 |
| Loading&unloading method | Top core screw pressing type |
| Service voltage | 380V |
| Brake | Electronic brake |
| Machine dimension(mm) | 3150x880x1015 |
| Machine weight(KG) | 2080 |
